Product
SVD-42 VFFS PILLOW/GUSSETED/CHAINED BAGGER


Features

* Low cost high gain, high speed and efficiency.

* Famous brand PLC control system, large touch screen, convenient to operate;

* Film drawing down system controlled by servo motor;

* minimize the loss with complete automatic warn protection function;

* It can complete feeding, measuring, filling, sealing, date printing, charging (exhausting), counting, finished product delivery when it equips with feeding and measuring equipment.

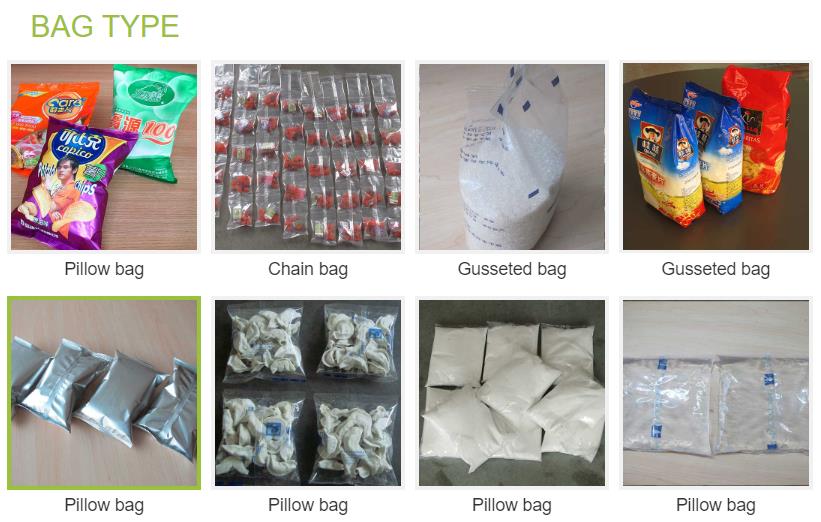

* the way of bag making: the machine can make pillow-type bag and standing bag according to customer’s requirements.

Data Sheet:

 Items

 Content

Packing speed

Max 70 bags/min (Specific speed depends on bag length, film material, product, etc.)

Bag size

(L)50-330 mm (W)50-200 mm

Bag making mode

Pillow-type bag, standing bag, bag with euro slot

Range of measuring

≤2.4L

Max packaging film width

420 mm

Thickness of film

0.04-0.09 mm

Air consumption

0.8 Mpa 0.3 cmb/min

Main power/voltage

2.7 KW/220V 50 Hz

Dimension

L1480*W960*H1400 mm

The weight of switchboard

400 kg
